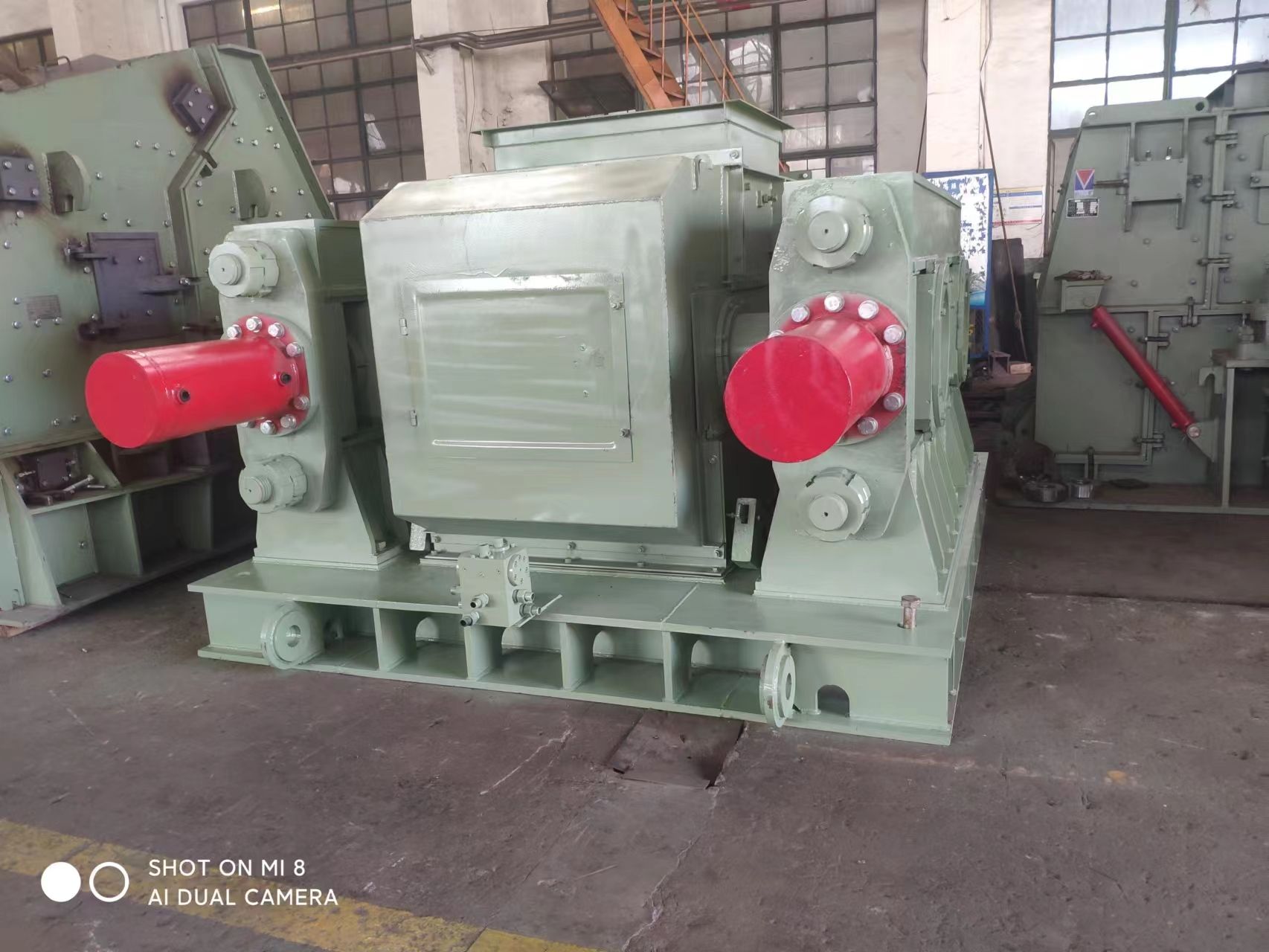

Double Roll Crusher 750×700mm

Double Roll Crusher is a kind of simple structure, compact, light medium crushing, fine crusher, coal crushing particle size regulation range is large, with the device and function of repairing wear rollers, strong adaptability to material moisture, smooth discharge. Used to break limestone, marl shale, brick, slag, clinker feldspar, coke, etc.

Contact Now WhatsApp

Product Details

1. APPLICABLE SCOPE

The roller crusher is a common crushing equipment, widely used in mining, metallurgy, building materials, chemical and other industries. Its main function is to break the bulk material into smaller particles through the rotation of the double rollers to meet the needs of the subsequent process. The roller crusher has the characteristics of high efficiency crushing, uniform particle size, strong adaptability and simple maintenance. Its structure is relatively simple, maintenance is more convenient, the gear or gear block on the roller can be replaced, prolong the service life of the equipment.

2. MAIN TECHNICAL PARAMETER

Items		Parameter
Roller Diameter（mm）		Φ750
Effective length of Roller（mm）		700
Max. feed size（mm）		40
Adjusting range of Final Grain Size（mm）		0-10
Roller Revolution（r/min）		71.4 (when working ) 62 (when cutting )
Capacity（T/h）		16
Motor	Type	Y225M-4
	Power（KW）	45
	Revolution（r/min）	1480
	Voltage (V)	380
Overall Size（L×W×H）（mm）		3979×2900×1190(Excluding System part)
Weight（Kg）		10680
